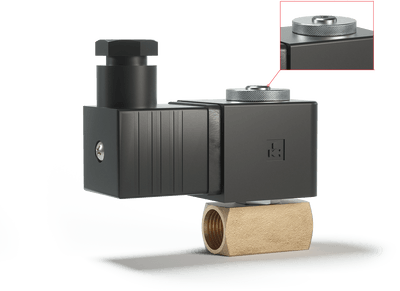

Series 72-10

3/2-way solenoid valves of type 72 as nipple seat valves are directly controlled in the actuation mode. For small nominal diameters up to DN6 mm, the valves are used to control single-acting actuators. Venting is done via the 3rd path in the solenoid tube. The venting path is limited to 2.5 mm.

Technical informations

Connections

G1/8, G1/4, G3/8

Pressure

0 bar up to 50 bar

Temperature

-20 °C up to 80 °C

Type of Control

electr. direct

Housing materials

CW617N brass

Sealing

EPDM | FKM | PTFE

Media

Air, Oxygen O2, natural Gas CH4, Hydrogen H2, Nitrogen Gas N2, Helium Gas He, Gasoline, Dieseloil, Fuels, JP-8 jet fuel aviation, kerosine, Acetone CH3COCH3, neongas NE, Ethane C2H6

Downloads

72 DIN EN 50155 Railway

Manual direct operated valves

All Products

Search as you type...

A7230/1002/0012-F

normally closed free of Oil/grease + dry

A7230/1002/0012-NG

normally closed Valve body with NPT thread

A7230/1002/0012-OF

normally closed Free of oil and grease

A7230/1002/0012-VW

normally closed PWIS free

A7230/1002/0012-XX

A7230/1002/0032-F

normally closed free of Oil/grease + dry

A7230/1002/0032-NG

normally closed Valve body with NPT thread

A7230/1002/0032-OF

normally closed Free of oil and grease

A7230/1002/0032-UL

normally closed UL-approval for solenoid

A7230/1002/0032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7230/1002/0032-VW

normally closed PWIS free

A7230/1002/0032-XX

A7230/1002/1012-F

normally closed free of Oil/grease + dry

A7230/1002/1012-NG

normally closed Valve body with NPT thread

A7230/1002/1012-OF

normally closed Free of oil and grease

A7230/1002/1012-VW

normally closed PWIS free

A7230/1002/1012-XX

A7230/1002/1032-F

normally closed free of Oil/grease + dry

A7230/1002/1032-NG

normally closed Valve body with NPT thread

A7230/1002/1032-OF

normally closed Free of oil and grease

A7230/1002/1032-UL

normally closed UL-approval for solenoid

A7230/1002/1032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7230/1002/1032-VW

normally closed PWIS free

A7230/1002/1032-XX

A7230/1004/0032-F

normally closed free of Oil/grease + dry

A7230/1004/0032-NG

normally closed Valve body with NPT thread

A7230/1004/0032-OF

normally closed Free of oil and grease

A7230/1004/0032-UL

normally closed UL-approval for solenoid

A7230/1004/0032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7230/1004/0032-VW

normally closed PWIS free

A7230/1004/0032-XX

A7230/1004/1032-F

normally closed free of Oil/grease + dry

A7230/1004/1032-NG

normally closed Valve body with NPT thread

A7230/1004/1032-OF

normally closed Free of oil and grease

A7230/1004/1032-UL

normally closed UL-approval for solenoid

A7230/1004/1032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7230/1004/1032-VW

normally closed PWIS free

A7230/1004/1032-XX

A7230/1006/0032-F

normally closed free of Oil/grease + dry

A7230/1006/0032-NG

normally closed Valve body with NPT thread

A7230/1006/0032-UL

normally closed UL-approval for solenoid

A7230/1006/0032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7230/1006/0032-VW

normally closed PWIS free

A7230/1006/0032-XX

A7230/1006/1032-F

normally closed free of Oil/grease + dry

A7230/1006/1032-NG

normally closed Valve body with NPT thread

A7230/1006/1032-UL

normally closed UL-approval for solenoid

A7230/1006/1032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7230/1006/1032-VW

normally closed PWIS free

A7230/1006/1032-XX

A7240/1002/0012-F

normally closed free of Oil/grease + dry

A7240/1002/0012-NG

normally closed Valve body with NPT thread

A7240/1002/0012-OF

normally closed Free of oil and grease

A7240/1002/0012-VW

normally closed PWIS free

A7240/1002/0012-XX

A7240/1002/0032-F

normally closed free of Oil/grease + dry

A7240/1002/0032-NG

normally closed Valve body with NPT thread

A7240/1002/0032-OF

normally closed Free of oil and grease

A7240/1002/0032-UL

normally closed UL-approval for solenoid

A7240/1002/0032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7240/1002/0032-VW

normally closed PWIS free

A7240/1002/0032-XX

A7240/1002/1012-F

normally closed free of Oil/grease + dry

A7240/1002/1012-NG

normally closed Valve body with NPT thread

A7240/1002/1012-OF

normally closed Free of oil and grease

A7240/1002/1012-VW

normally closed PWIS free

A7240/1002/1012-XX

A7240/1002/1032-F

normally closed free of Oil/grease + dry

A7240/1002/1032-NG

normally closed Valve body with NPT thread

A7240/1002/1032-OF

normally closed Free of oil and grease

A7240/1002/1032-UL

normally closed UL-approval for solenoid

A7240/1002/1032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7240/1002/1032-VW

normally closed PWIS free

A7240/1002/1032-XX

A7240/1004/0032-F

normally closed free of Oil/grease + dry

A7240/1004/0032-NG

normally closed Valve body with NPT thread

A7240/1004/0032-OF

normally closed Free of oil and grease

A7240/1004/0032-UL

normally closed UL-approval for solenoid

A7240/1004/0032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7240/1004/0032-VW

normally closed PWIS free

A7240/1004/0032-XX

A7240/1004/1032-F

normally closed free of Oil/grease + dry

A7240/1004/1032-NG

normally closed Valve body with NPT thread

A7240/1004/1032-OF

normally closed Free of oil and grease

A7240/1004/1032-UL

normally closed UL-approval for solenoid

A7240/1004/1032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7240/1004/1032-VW

normally closed PWIS free

A7240/1004/1032-XX

A7240/1006/0032-F

normally closed free of Oil/grease + dry

A7240/1006/0032-NG

normally closed Valve body with NPT thread

A7240/1006/0032-UL

normally closed UL-approval for solenoid

A7240/1006/0032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7240/1006/0032-VW

normally closed PWIS free

A7240/1006/0032-XX

A7240/1006/1032-F

normally closed free of Oil/grease + dry

A7240/1006/1032-NG

normally closed Valve body with NPT thread

A7240/1006/1032-UL

normally closed UL-approval for solenoid

A7240/1006/1032-UL-NG

normally closed Valve body with NPT thread UL-approval for solenoid

A7240/1006/1032-VW

normally closed PWIS free

A7240/1006/1032-XX
